Date/Code Laser Printer

Date/ Code Laser Printer

3210 CO2

Videojet Laser

Achieve new levels of coding efficiency and quality with a world-class CO2 laser designed to be accessible to all.

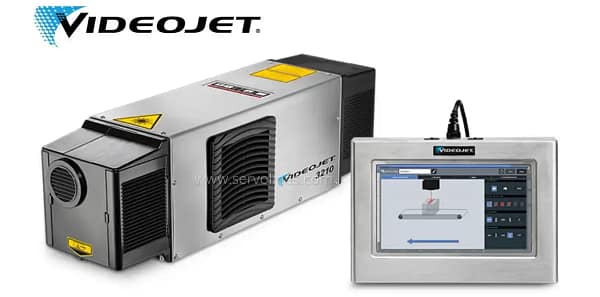

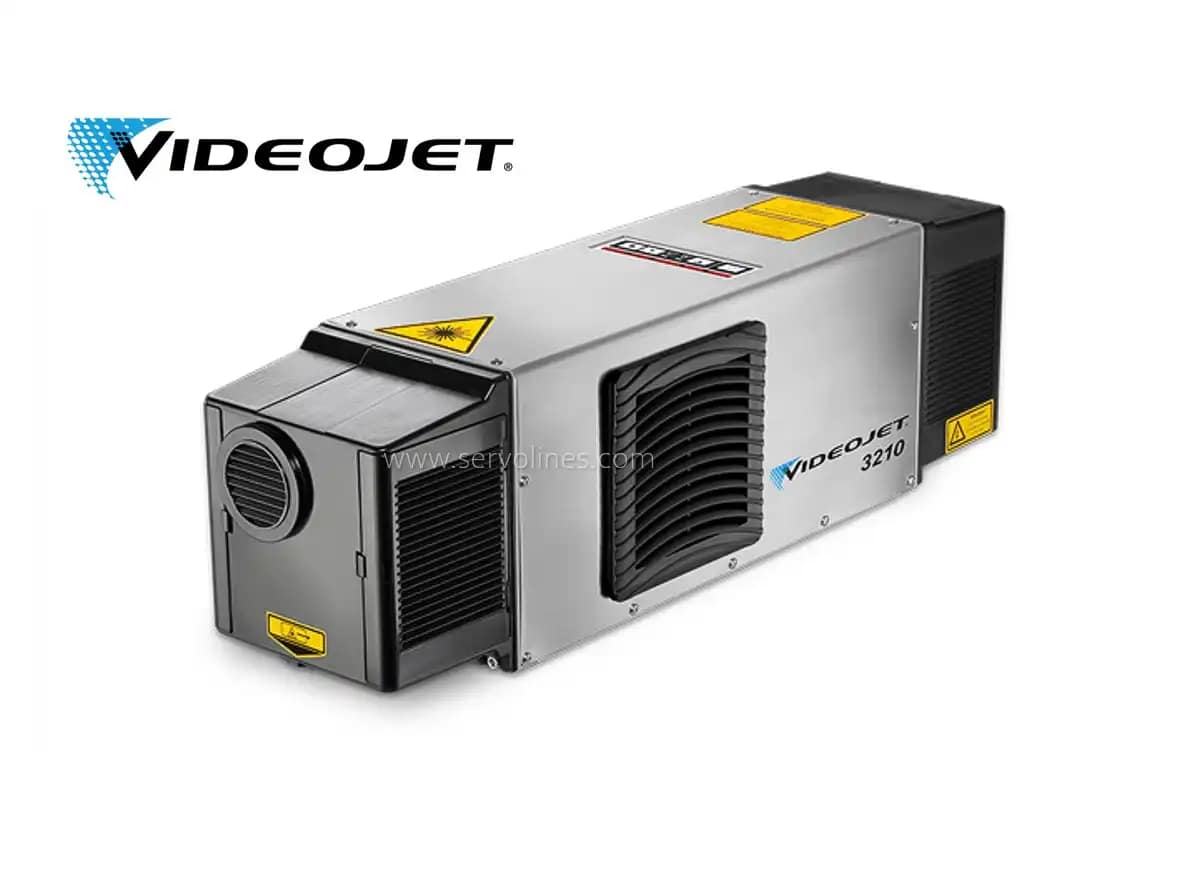

Modernize Your Production With The Videojet 3210 CO2 Laser,
Engineered To Bring The Laser Within Reach.

The Videojet 3210 CO2 laser removes the need to compromise on quality versus cost. Advanced engineering and extensive laser application expertise are combined into a refined design that makes laser coding achievable for everyone.

Laser systems offer unique benefits compared to traditional coding solutions. Featuring a long-life laser source, high-quality codes, and no consumables, the 3210 CO2 laser is an effective choice for your production.

Whether new to laser coding or upgrading from an older system, the 3210 is designed to make the transition seamless with a compact, single-box solution that is easy to install and requires minimal operator training.

The Videojet 3210 30-Watt CO2 laser marking system removes the need to compromise on quality versus cost. Advanced engineering and extensive laser application expertise are combined to deliver a refined design that makes laser coding achievable for everyone. Whether new to laser coding or upgrading from an older system, the 3210 is designed to make the transition seamless with a compact, single-box solution that is easy to install and requires minimal operator training.

Designed For Efficiency.

• A compact, lightweight design makes line integration seamless while versatile mounting configurations simplify line changeovers.
• Videojet technicians are on hand to help ensure your laser is set up quickly and correctly.

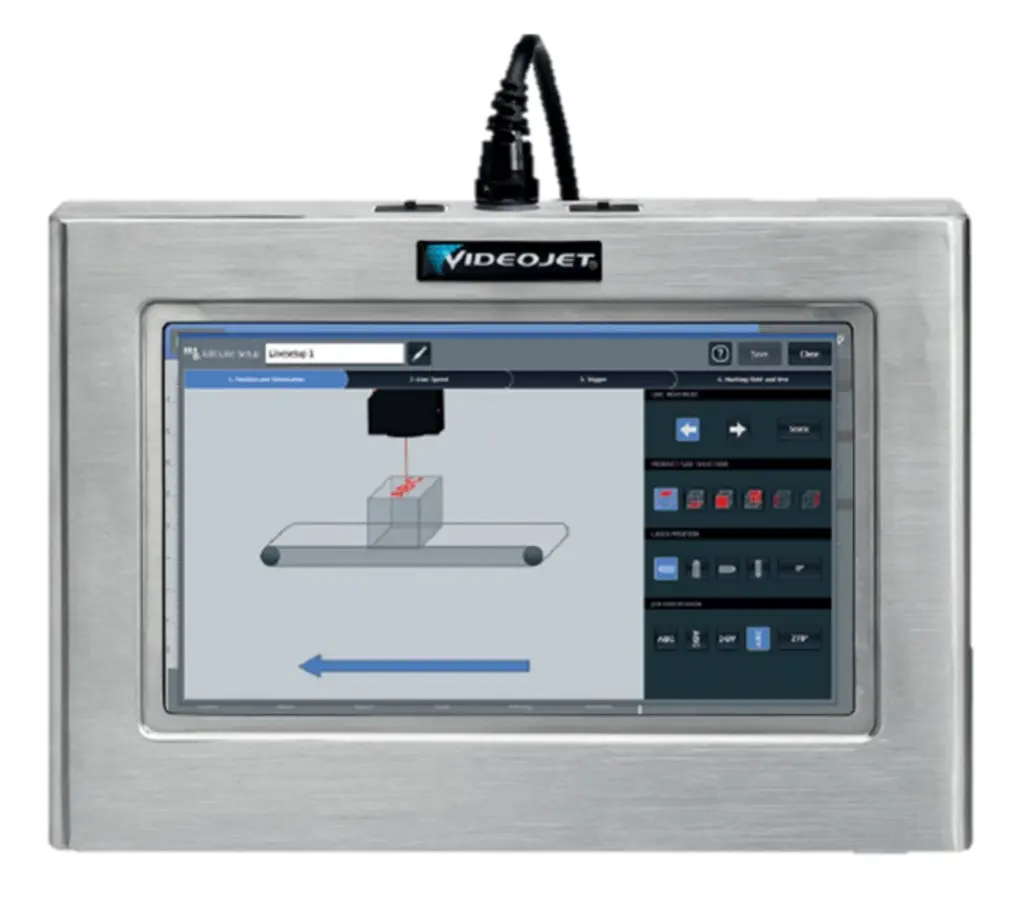

• The intuitive touchscreen interface and setup wizards make job creation straightforward.

Marking speed
Up to 1,300 characters/sec.(maximum marking speed is application dependent)

Line speed
Up to 360 m/min. (1,181ft/min.) (maximum line speed is application dependent)

Marking window
36×57 mm² to 72×115 mm²

Wavelengths
9.3 µm, 10.2 µm, 10.6 µm

Marking formats
Standard industrial fonts (Type 1 Windows® TrueType®) and Single line fonts
Machine-readable codes (OCR, 2D-matrix, etc.)
Bar codes: BC25, BC251, BC39, BC128, GS1-128, EAN13, UPC_A, RSS14,
RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omnidirectional, RSS Limited,
RSS Expanded, etc.
Graphics, logos, symbols, etc.
Linear, circular, angular, reverse, rotate
Sequential and batch numbering
Automatic date, layer and time coding; real-time clock
Dot mode enables marking 2D codes faster than traditional grid mode

Laser tube
Sealed CO2 laser, power class 30-Watt

Beam deflection
Steered beam with digital high-speed galvanometer scanners

Focusing
Focal lengths: 100 / 150 / 200 mm (3.94 / 5.91 / 7.87 inches)

Operator interface options
Handheld or touchscreen controller
TCS+ via Web Browser

Language capabilities
Arabic, Brazilian Portuguese, English, Japanese, Korean, Simplified Chinese,
Spanish, Thai, Traditional Chinese, UK English, Vietnamese; interface dependent.

Communication
Ethernet, TCP/IP
Inputs for encoders and product detectors
9 inputs / 5 outputs in addition to machine/operator interlocks

Integration

Direct integration into complex production lines via the scripting interface

Electrical requirements
100-120 VAC; 200-240 VAC 0.7 KW

Cooling system
Air-cooled

Environment
Temperature 40-105°F (5-40°C)
Humidity 20% – 90%, non condensing

Sealing and safety standards
IP54
IEC 60825-1
IEC 62368-1
IEC 60204-1

Approximate weight
41.9lbs. (19kg)

Applicable certifications
CE
Compliance (no certification required): ROHS

Dimensions

A Better Solution For Your Line

Laser systems are ideal for customers looking to achieve superior code quality with minimal effort.
