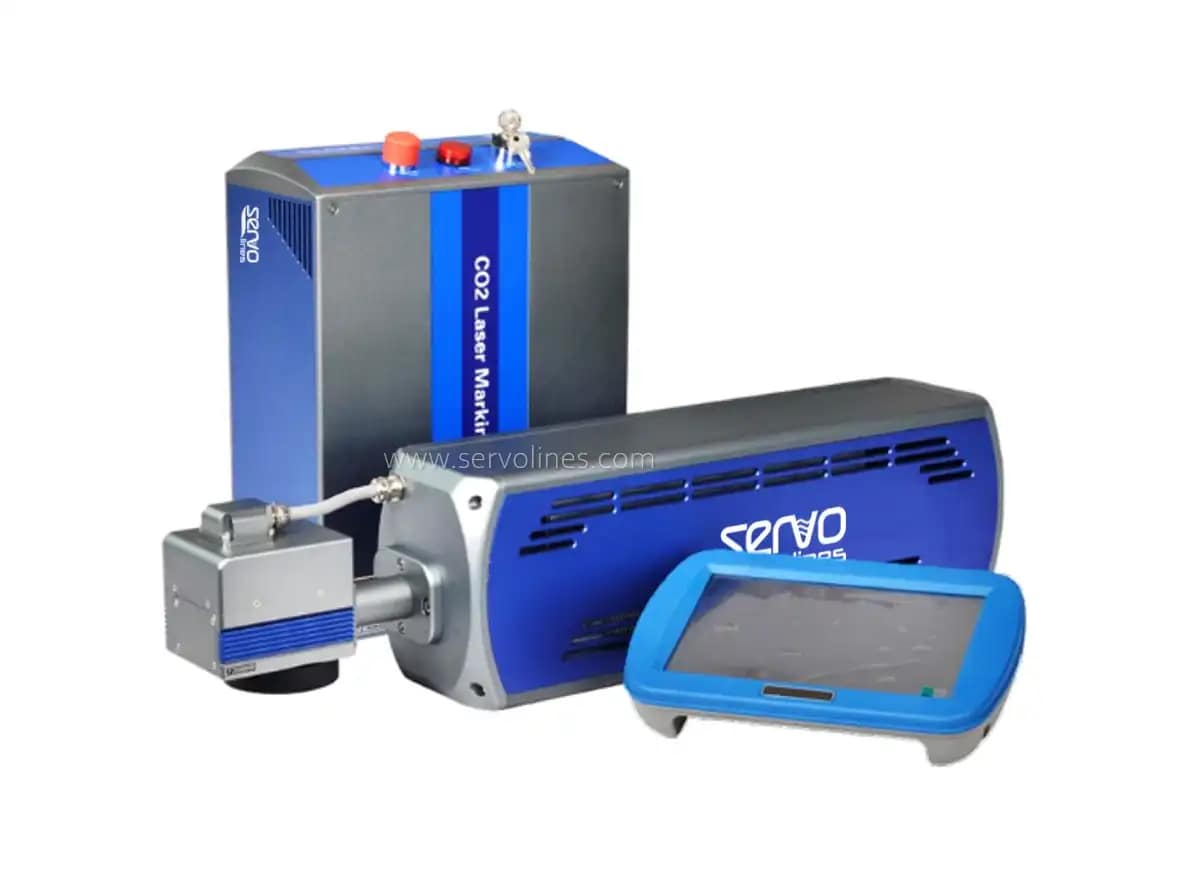

Date/ Code Laser Printer
SVC-7130PLUS
30W
Application Industry
Food, beverage, wine, medicine, pipe and cable, daily chemical, packaging, electronics, etc.
For food, beverage, beverage, and medicine covered with film.
Marking Material
PET、Acrylic, glass, leather, plastics, cloth, cartons, rubber, such as mineral water bottles, cooking oil, wine bottles, food packaging bags, etc.
Marking Method
X.Y Axis simultaneous scanning mode.
Parameter
Model: | SVC-7130PLUS |
Marking mode: | Flight marking |
Flight marking: | 100m/min |
Static Marking: | Multiple products can be marked at the same time |
Type: | CO2 |
laser wavelength: | 10.6μm |
laser output: | 30W |
laser life: | 30000H |
Guided laser： | Red Light Guide |
Scope of marking ： | Optional 90*90 / 110*110 / 175*175 / 300*300 mm |
Calibration resolution： | 0.01mm-2mm |
Scanning speed： | ≥10000mm/S |
Supply voltage： | AC 220V 50HZ |
Power consumption: | 800w |
