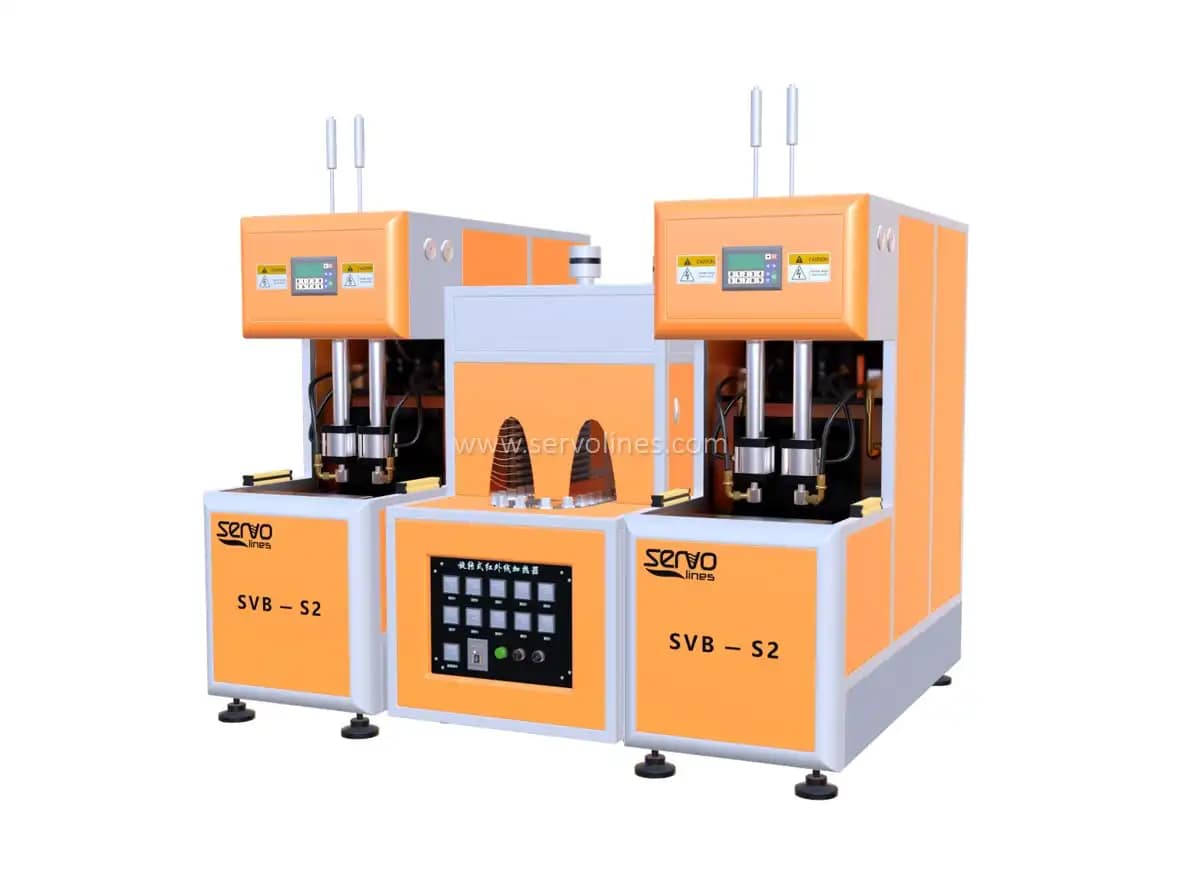

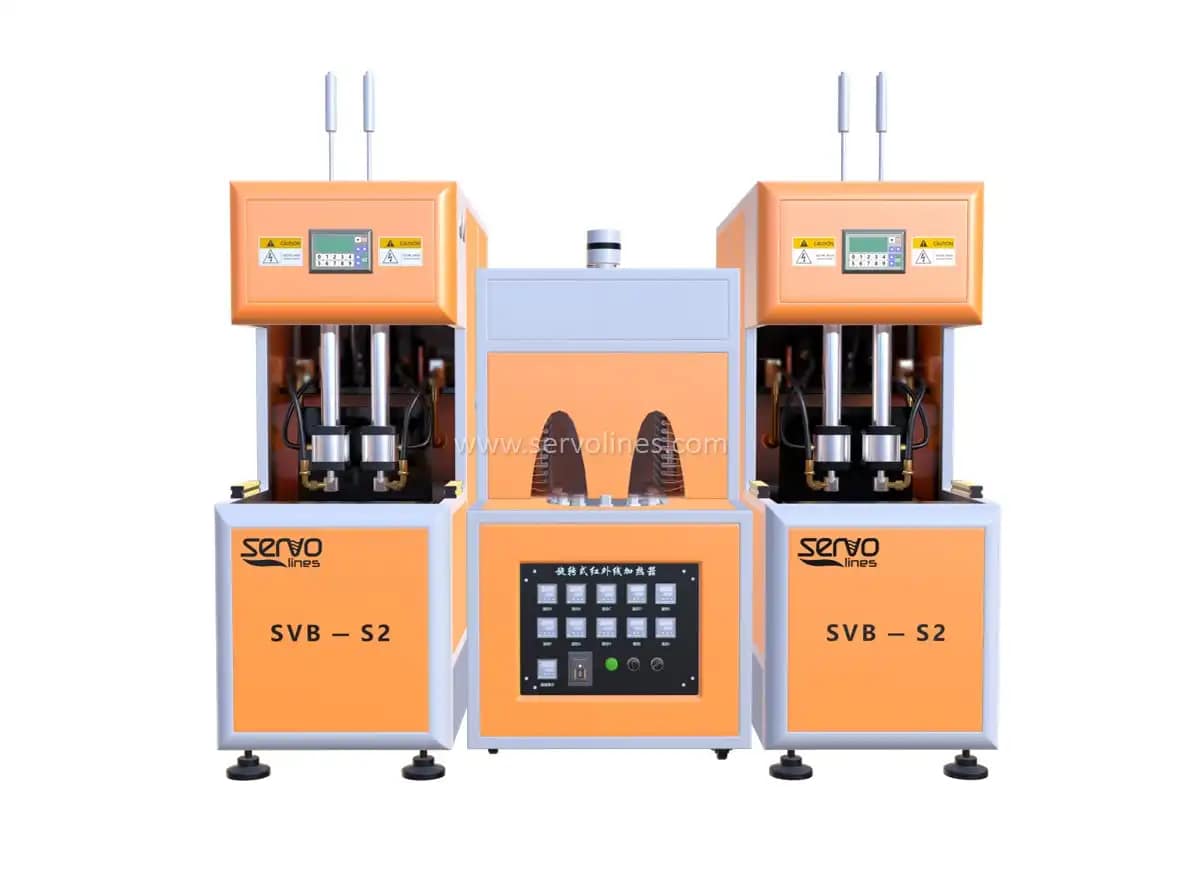

Semi-Automatic two cavities blowing line SVB-S2

Semi-Automatic Two Cavities PET Bottle blowing line

with bottle auto-drop

SVB-S2

Stable Capacity: 1800~2000BPH

Semi-Automatic two cavities blowing line SVB-S2

1. Technical Process:
High-Pressure Air Compressor High-Pressure Air Tank High-Pressure Filters High-Pressure Air Dryer
Semi-Automatic Blowing Machine.

2. Machine Specifications

Model:

SVB-S2

Stable capacity:

1800~2000BPH

Bottle Auto-drop:

Included

Finished bottle body diameter:

30mm-130mm

Finished bottle body height:

50mm-350mm

Finished bottle body neck diameter:

15mm-120mm

Mold Cavity:

2 cavities

Mold thickness:

100~250mm

Max. stretching distance:

430*380mm

Power voltage:

3Phase 380V/ 50HZ

Installed power / actual power:

35W – 45W

High pressure air compressor:

1.2m3/min 3.0MPa

Air dryer:

2.0m3/min 3.0MPa

Cooling Water:

Optional

Machine dimensions:

Machine weight:

3. Configuration Details

Name

Brand

Origin

PLC

Taiwan DELTA

Screen

Taiwan DELTA

Circuit breaker

France Schneider

Start button

France Schneider

Two-position switch

France Schneider

Scram button

France Schneider

Power supply

Taiwan DELTA

Temperature controller

Taiwan DELTA

High pressure blowing valve

USA PARKER

High pressure exhaust valve

USA PARKER

Low pressure muffler

Japan SMC

High pressure muffler

USA ALWITCO

LP press-regulating valve

Germany FESTO

Low pressure lubricator

Germany FESTO

Clamping cylinder

YongCheng

China YongCheng

Stretching cylinder

YongCheng

China YongCheng

Semi-Automatic two cavities blowing line SVB-S2

4. Auxiliary Equipment

4.1 HP Air Compressor

Semi-Automatic two cavities blowing line SVB-S2

4.2 HP Air Tank

Semi-Automatic two cavities blowing line SVB-S2

4.3 HP Air Filter

Semi-Automatic two cavities blowing line SVB-S2

4.4 HP Air Dryer

Semi-Automatic two cavities blowing line SVB-S2

4.5 Air Cooling Chiller

Semi-Automatic two cavities blowing line SVB-S2
