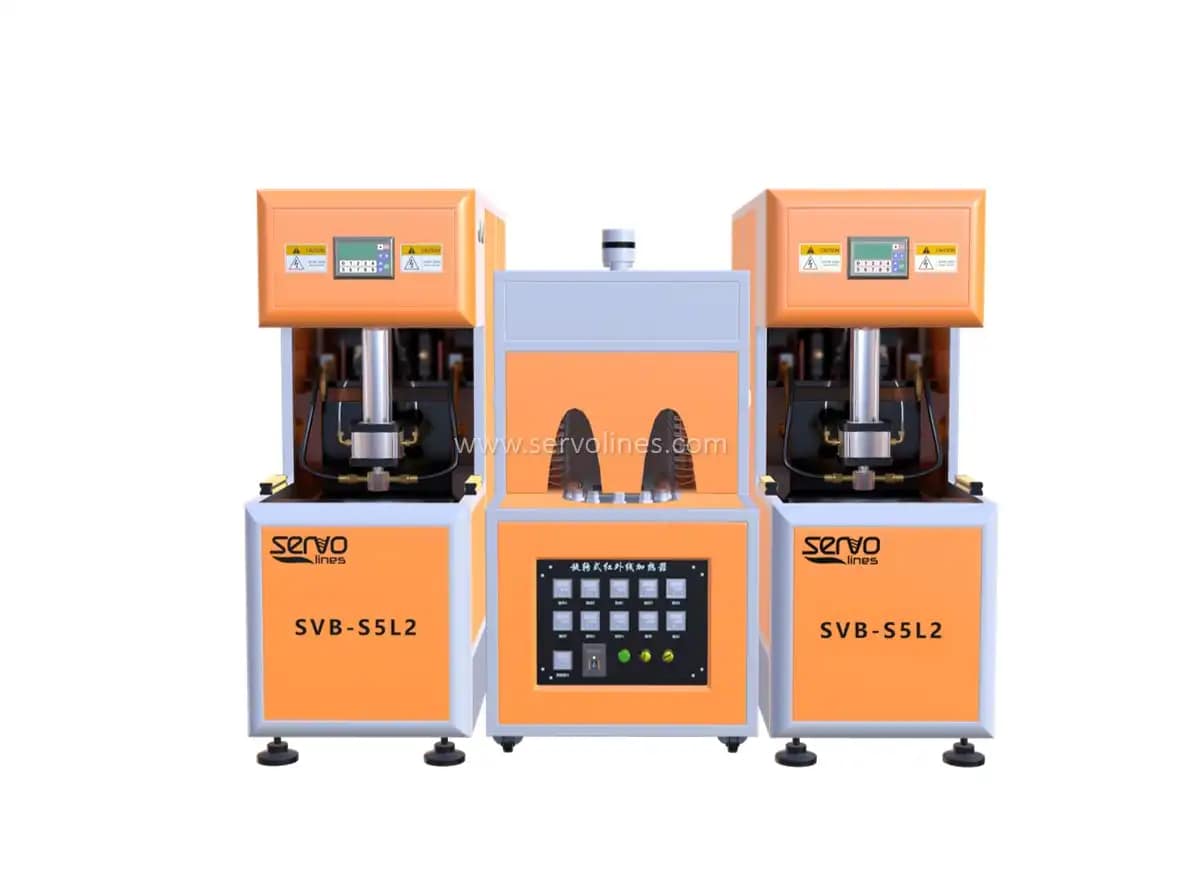

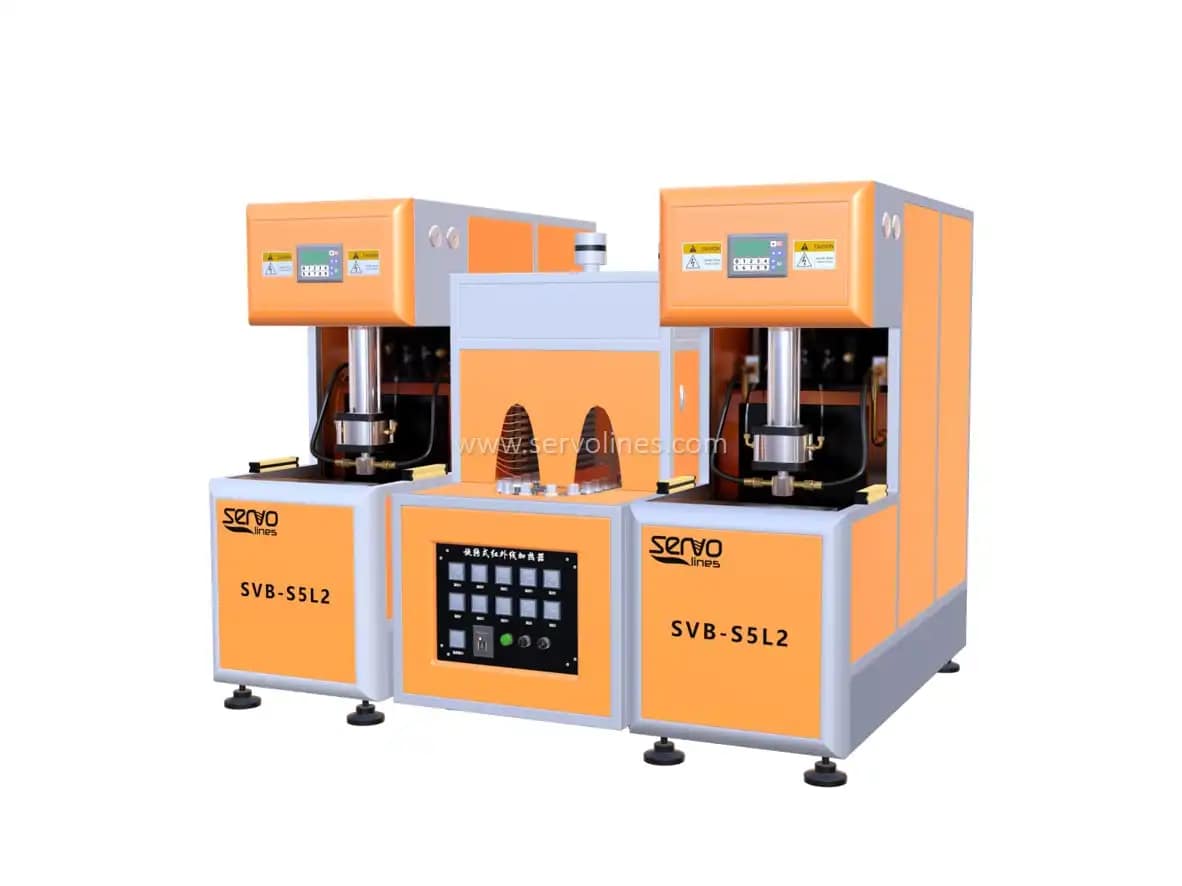

Semi-Automatic 5L PET Bottle Blowing Line

SVB-S5L2

Stable Capacity : 800~1000BPH

1. Technical Process:
High-Pressure Air Compressor → High-Pressure Air Tank → High-Pressure Filters → High-Pressure Air Dryer
→ Semi-Automatic Blowing Machine.

2. Machine Specifications

Model:	SVB-S5L2
Stable capacity:	800~1000BPH
Max. bottle volume:	5L
Max. bottle diameter:	200 mm
Max. bottle height:	400 mm
Max. bottle neck diameter:	120mm
Mold Cavity:	1 cavity
Mold thickness:	300mm
Max. stretching distance:	490*475mm
Power voltage:	3Phase 380V/ 50HZ
Installed power / actual power:	31W + 35W
High pressure air compressor:	1.6m3/min 3.0MPa
Air dryer:	2.0m3/min 3.0MPa
Cooling Water	3HP
Machine dimensions:
Machine weight:

3. Configuration Details

Name	Brand	Origin
PLC		Taiwan DELTA
Screen		Taiwan DELTA
Circuit breaker		France Schneider
Start button		France Schneider
Two-position switch		France Schneider
Scram button		France Schneider
Power supply		Taiwan DELTA
Temperature controller		Taiwan DELTA
High pressure blowing valve		USA PARKER
High pressure exhaust valve		USA PARKER
Low pressure muffler		Japan SMC
High pressure muffler		USA ALWITCO
LP press-regulating valve		Germany FESTO
Low pressure lubricator		Germany FESTO
Clamping cylinder	YongCheng	China YongCheng
Stretching cylinder	YongCheng	China YongCheng
