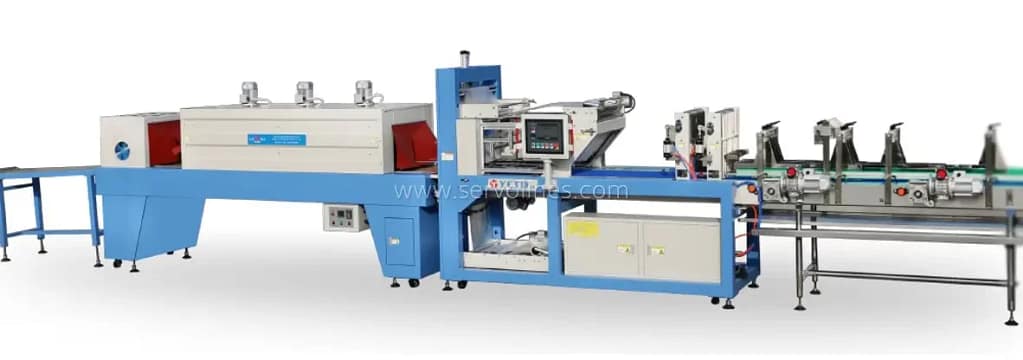

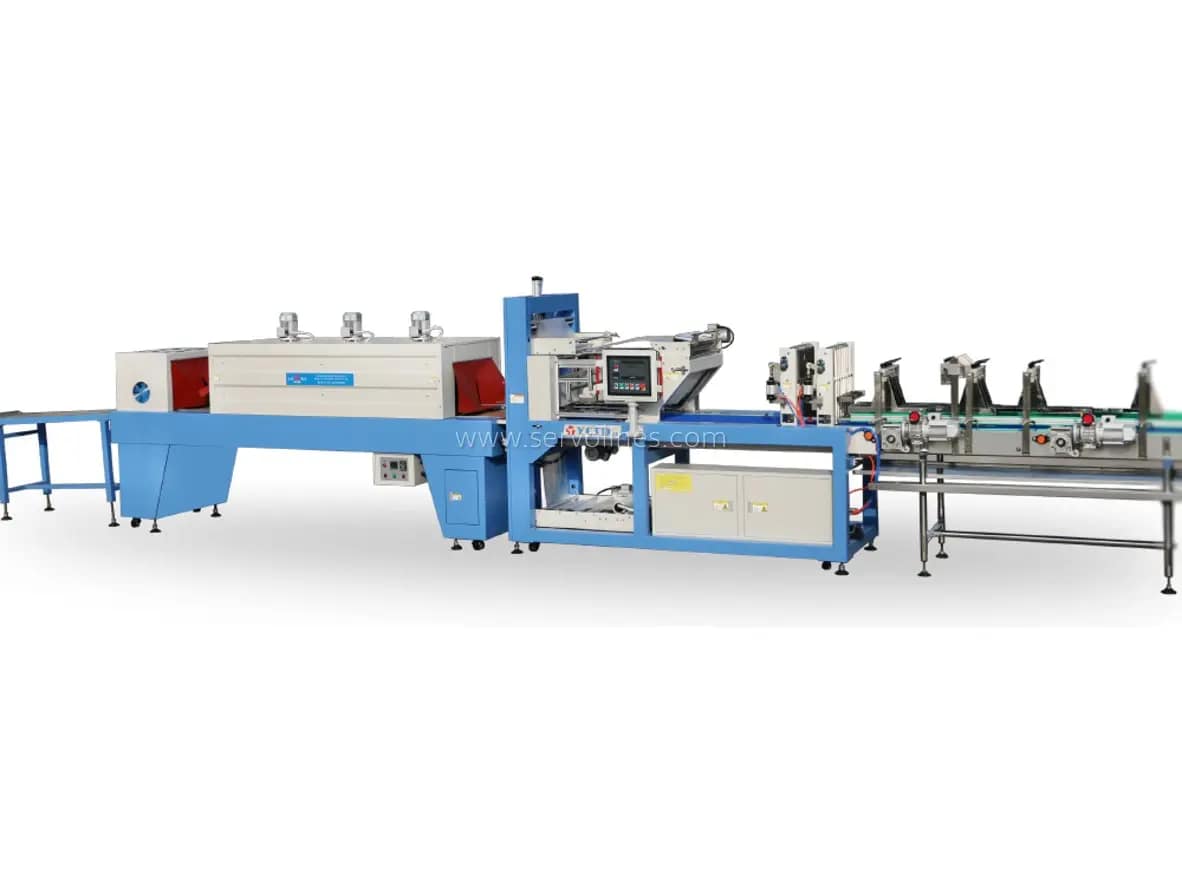

Linear Type Film Wrapping Machine
The YCBS25 shrink film packaging machine features a packaging speed of 20 pcs/min and is suitable for shrink film packaging of beer, beverages, fruit juices, bottled water, dairy products, condiments, and so on with or without bottom support.
Specially designed for the full-automatic packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc. With full-automatic functions of bottle transfer and arrange, membrane packing, sealing and cutting, shrinkage, cooling, shaping, etc. Using advanced constant temperature membrane heat binding technology in the world with a clear and secure seal. The quick seal cooling structure guarantee that the seal has a higher strength even if under high-speed production condition. Adopt with PLC automatic program circulation control with stable and reliable performance. The originally imported guide bar cylinder guarantees correct operation and durability. The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss. All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed. Unique thermal passage with 2 sets of the centrifugal thermal air circulation system that has an equal heat distribution with a beautiful and secure shrinkage effect. 3 layers of heat insulation treatment with good insulating property, quick temperature rise, and energy saving. The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported. It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.
Main Technical Parameters
Three-phase-five –line 380V/50Hz, 38KW
0.6～0.8Mpa (without oil without water)
LDPE print film（dust & static electricity removed）
Width of film roll：
Thickness of film：
Diameter of film roll：
The Main Performance Characteristics
- Adopt new technology design, human-machine interface, simple and clear, humanized operation mode.
- Classic shape, beautiful, novel structure, unique, easy operation and maintenance. Electronic sensing PE film delivery, sending film stable, fast and convenient for membrane.
- The third generation SHF thermostatic seal cutter, Edge firmly, cut off quickly. Sealing strength of cold cut hot knife more than 3 times, uniform sealing formation, the service life is 80 times the hot sealing knife.
- A shrinkage chamber using circulating air supply technology, reasonable structure, thermal insulation, high-temperature precision, and shrink packaging effect is better.
- Supporting Germany’s Siemens, Japan’s OMRON, UNIQUE, and other advanced control components, well-equipped.
- The gap between the cooling channel and the contraction channel is greater than 500mm so that the cold wind can be avoided and the heat loss will be reduced.
- Film-sending motor, new circulation wind motor with overload protection device; add OMRON intermediate relay, to protect the circuit security.
