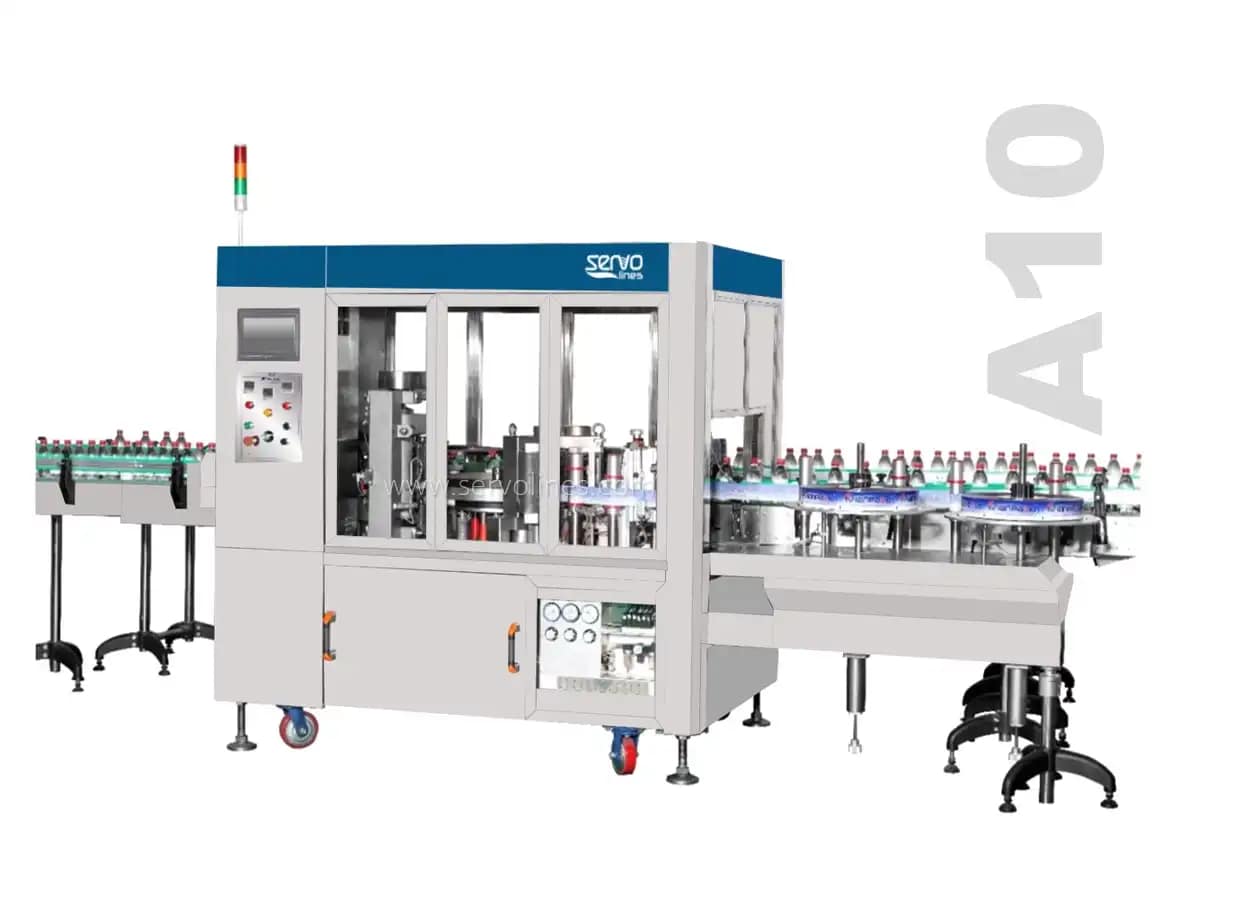

SVL-A10 Linear Automatic Hot Glue Labelling Machine

Linear Automatic Hot Glue Labelling Machin

SVL-A10

Stable Capacity: 10000BPH

SVL-A10 Linear Automatic Hot Glue Labelling Machine



Machine Introduction:

Linear OPP hot melt glue adhesive labeling machine is the newest continuous operation of the labeling machine.

They are mainly used for container labeling cylindrical shapes of detergents, beverages, mineral water, food, etc. The material of the label is using the environmental material of OPP films. It can automatically oxidative decomposition and reduce production costs by more than 30 percent.

The labeling machine is controlled by a PLC touch screen, the all-electric eye is using an imported advanced configuration. This labeling machine with high speed, high accuracy, stable performance, is easy to operate, and look elegant appearance.

SVL-A10 Linear Automatic Hot Glue Labelling Machine

Machine Parameter:

Model:

SVL-A10

Stable capacity:

10000BPH

Percent of pass:

≥99.5

Accuracy of labeling:

±1mm

Diameter of bottle:

40-95mm

Material of bottle:

Glass, Metal, Plastic

Shape:

Round

Label material:

OPP, BOPP, PAPER

Label thickness:

0.035-0.05mm

Label height:

40mm-140mm

Inside diameter of paper tube:

6 inch

Power consumption of air source:

0.5Mpa

Operation:

Automatically

Power:

AC 3ψ380V50Hz

Rate power:

12KW

Machine size:

2636L*1500W*2050H (mm)

Machine weight:

2.5T

Machine Configuration:

Name

Brand

Origin

PLC

Taiwan

Servo motor

Taiwan

Servo drive

 Taiwan

Inverter drive

Denmark

Sensor

Japan

Decoder

Japan

Touch screen

 Taiwan

Cylinder

Japan

Indicator light

France

Button

France

Switch

France

AC contactor

France

DC contactor

France

Air switch

France

Solid state relay

Taiwan

Temperature Controller

Japan

Limit switch

Japan



SVL-A15 Features:

  1. The body is built with stainless steel, steel construction stable and not rust
  2. The whole machine used a quick-release type of construction. In order to change and adjust easier.
  3. Centralized lubricating system for simple and effortless maintenance, lubrication, and cleanness
  4. With photo-sensors to detect label output and automatically self-regulated production speed for integrating production line with other machines
  5. Used stable and reasonable compiling program. It can be suitable for operation 24 hours.
  6. The bottle working mode is linear Input and output type.
  7. Equipped with the Torque limiter would control the torsion range abnormal situation of the machine. It will reduce the accident operating.
  8. Roller coating, gluing balance, and glue saving.
  9. Alarm system: Caution light & buzzer for out of labels, Label break, and door open!
  10. Cut label system: Used multiple cures of cut system organization. (It is not a quick-wear part)
  11. The machine production speed is controlled by the machine input bottle signal. It is an automatic transmission. If input bottle stock, then the machine will increase speed. If the input bottle did not have a bottle the machine will a transmission speed slow.
  12. The machine production speed is controlled by the machine input bottle signal. It is an automatic transmission. When the machine output bottle stock then the machine will be transmission speed to slow. If the output bottle is smooth the machine will increase the speed.

Type – Linear Hot Melt Labeling Machine – Machine Configuration:

  1. Fully enclosed Host: door stop
  2. send bottles: Screw or star wheel
  3. Feeding bottle: cylinder
  4. Sperate bottle: Stars Wheel
  5. Sending label: servo encoder control.
  6. Illumination: LED, top + bottom access operation lamp lights + electrical control box overhaul lights
  7. fixed feeding shelf: Removable standard planar fast. (Optional double frame)
  8. Touch screen: single touch
  9. cabinetwork: Column cabinet manually unscrew the formula
  10. corrective devices: Germany E + L
  11. Alarm system: warning light & buzzer, lack of material, marked off, open the door
  12. Label system: Physical adjustable friction brake feed
  13. Transmission systems: machine connections, independent label transmission.



Machine internal layout:

SVL-A10 Linear Automatic Hot Glue Labelling Machine
