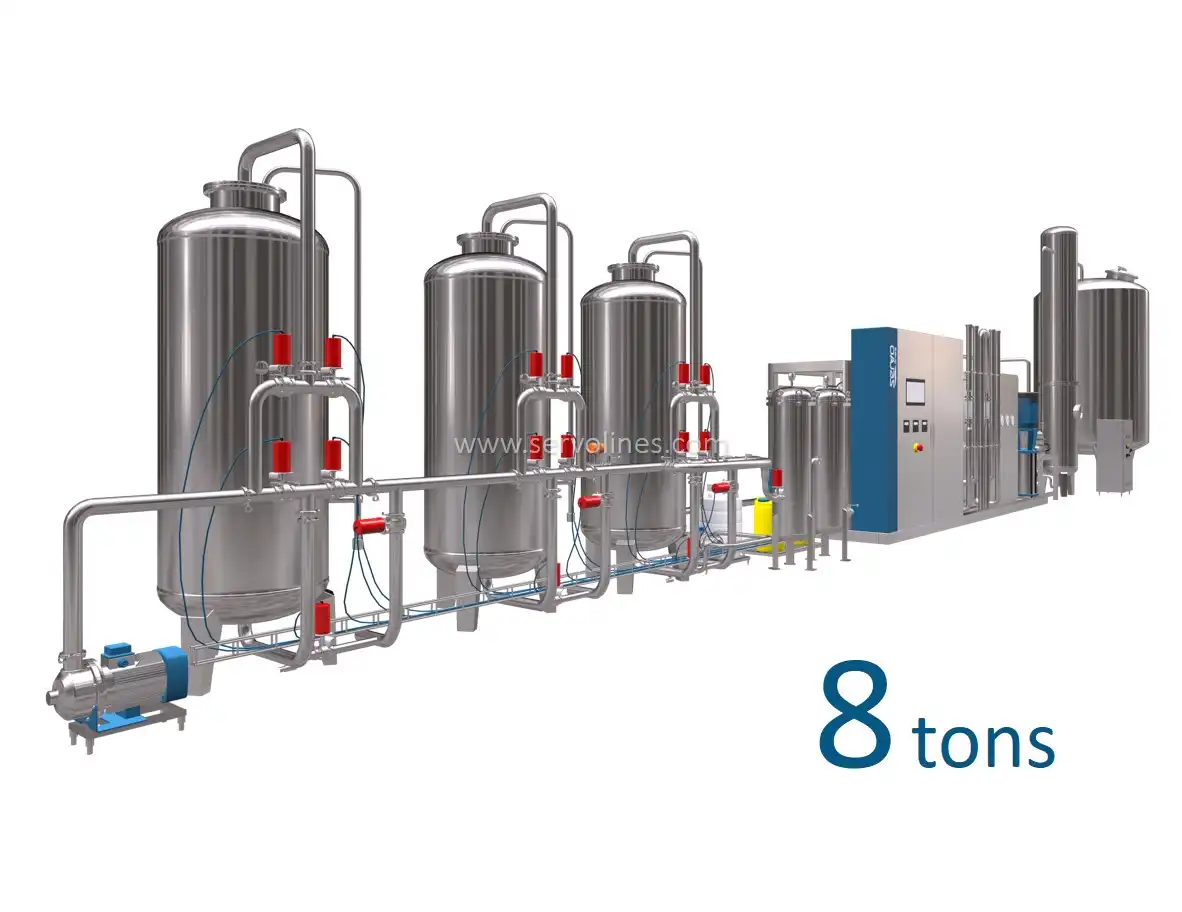

8T/H Reverse Osmosis Water Treatment System

8T/H Reverse Osmosis Water Treatment System

Reverse Osmosis Water Treatment System

SVT-8T/H

8000L/H

8T/H Reverse Osmosis Water Treatment System

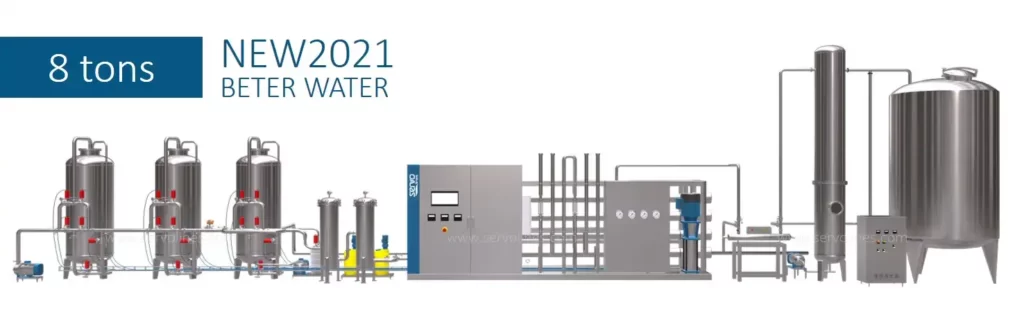

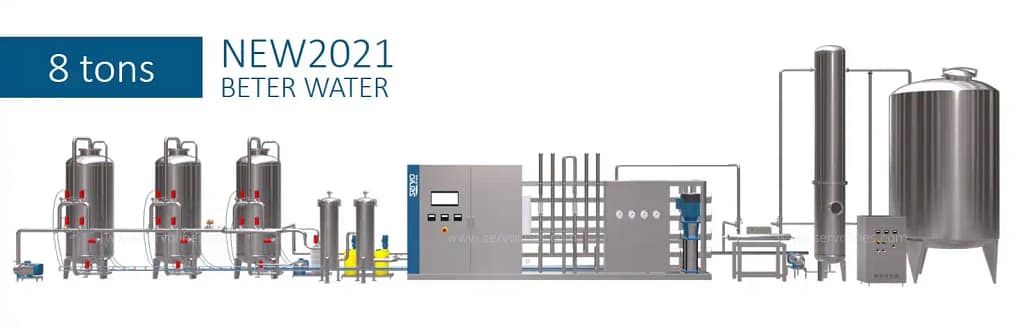

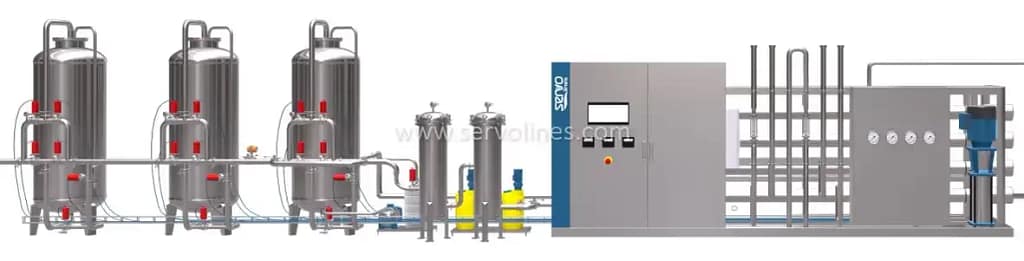

Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to remove ions, unwanted molecules and larger particles from drinking water. The system main equipment are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc.

1. Water Source Pump

8T/H Reverse Osmosis Water Treatment System



2. Silica Sand

Filter Introduction:

When the water through the machine, it machine will stop suspend through the good quality silica sand. Protect the following machines and clean the water. This machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine.

8T/H Reverse Osmosis Water Treatment System



3. Active Carbon Filter

Filter Introduction:

It can remove the pigment, smell and a large number of biological organisms in the water. This active carbon filter is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army, station and dock. All in all, it is a really good water supply device for both industry and living.

8T/H Reverse Osmosis Water Treatment System



4. Sodium Ion Exchanger

Filter Introduction:

Sodium Ion exchanger we also called softener, that soften theory is exchanging NA++ of resin itself of Ca++ Mg++ of water resource with ion to make water resource soften and become soft water. Sodium Ion exchanger is including refreshing device and pump etc.

8T/H Reverse Osmosis Water Treatment System



5. Chemical Dosing Device



Introduction:

It can control the water PH and anti scale adding. So it can prolong the machine using time. In addition, it can even control the water flavor.

This is a injection system which will inject chlorine proportionally to the water flow. It is fully electronic and adjustable.

Includes:

  • Chemical Injection Pump.
  • Water Meter.
  • 15 Gallon Solution Tank.

8T/H Reverse Osmosis Water Treatment System



6. Micron Filter

Introduction:

It can ensure that granularity of the water into reverse osmosis is less than 0.5um / 0.1um.

8T/H Reverse Osmosis Water Treatment System



7. Reverse Osmosis

8T/H Reverse Osmosis Water Treatment System

Introduction:

  • The device’s key part is reverse osmosis membranes that is from America, it has a good performance to eliminate salts and the high-pressure pump is from a high-quality pump producer in China, it is easy to handle for its simple structure. The source water, in the case that the TDS is less than 400mg/L, can reach the national standards totally after treatment by this device, it is the most ideal equipment for water treatment.
  • The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintainable.
  • Stainless-steel high-pressure film shell
  • All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system.
  • Online type pressure auto self-protection device.
  • Online type of electricity indicator (with stable compensation).
  • System safe protecting and alarm system.

Control cabinet with transducer:

ABB transducer is used for the source water pump, High-pressure pump, pure water pump when the input and output pressure is not stable, it can control it automatically and the reverse osmosis membrane can lift pressure slowly, to avoid the damage of high-pressure water impact.

Name

Brand

Origin

PLC

Germany

Touch screen

Germany

Contactor

Germany

Mid relay

Germany

Breaker

Germany

Transducer

Swiss

Mid relay

US

Water pump

China

PH adjustment device

Italy

UV lamp

Netherlands



8. High Pressure

Introduction:

This system is equipped with a high-pressure water pump, which is used to pressurize reverse osmosis and provide a power source for reverse osmosis system Each high-pressure pump is equipped with a soft starter and a low-pressure protection device to prevent the high-pressure pump from generating strong water shock and damaging the high-pressure pump and reverse osmosis membrane components during the start-up and shutdown.

8T/H Reverse Osmosis Water Treatment System



9. Ozone Sterilizer

Introduction:

  • The device’s key part is reverse osmosis membranes that is from America, it has a good performance to eliminate salts and the high-pressure pump is from a high-quality pump producer in China, it is easy to handle for its simple structure. The source water, in the case, that the TDS is less than 400mg/L, can reach the national standards totally after treatment by this device, it is the most ideal equipment for water treatment.
  • The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles, and organic materials, becoming the best first-choice equipment in the engineering of modern purified water, highly purified water, and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique.

8T/H Reverse Osmosis Water Treatment System



10. Ozone Mixing Tower

Introduction:

Ozone sterilizer is commonly used in water treatment system of sterilization equipment, sterilization effect not only, and the water content of bacterial species, number of bacteria, ozone, ozone and associated with the exposure time and the contact area of water, in general, the longer the ozone and water contact, mixing the more fully, ozone sterilization effect is good, cloth gas plate, the smaller the porosity, ozone is cut into the smaller the bubble, the bigger area of ozone contact with water, then mixing effect is better, the sterilization effect is better. Advantages and disadvantages of ozone mixing towers.

8T/H Reverse Osmosis Water Treatment System



11. UV Sterilizer

Introduction:

The products adopt a high-intensity, long-lived UV germicidal lamp, the device is reasonable, compact, and adopts the structure of secondary disinfection, so health indicators completely according to the state standard.

8T/H Reverse Osmosis Water Treatment System



12. Finished Water Tank

8T/H Reverse Osmosis Water Treatment System
